G100 Welded Master Link Assembly with Flat（TH-1015）

Green painted.other colour is available as per request.

Working load limit permanently shown on the body.

Max proof load is 2.5 times of the working load limited.

Min.Breaking strength is 4 times of the W.L.L.

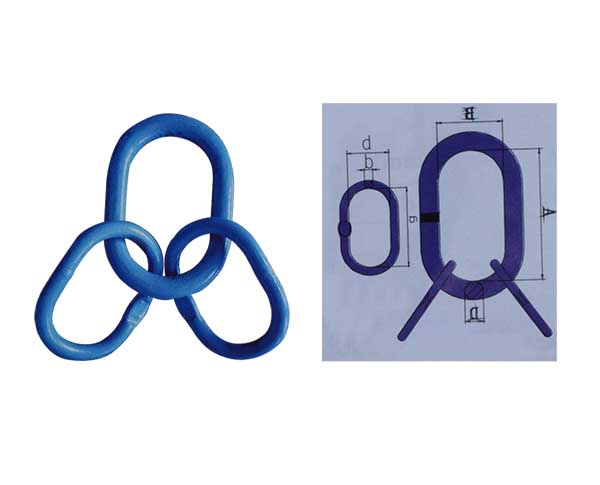

Size W.L.L B.L Dimension（mm） Weight
(t) (t) A B D a b d kg/pc
6-10 3.5 14 150 90 19 120 70 14 1.8
8-10 5 20 160 95 22 140 80 17 3
10-10 11.5 46 200 120 30 160 95 22 6.5
13-10 17 68 250 150 40 200 120 30 15
16-10 28 112 300 200 50 200 120 32 23
