CTY-A手動(dòng)液壓升高車(chē)

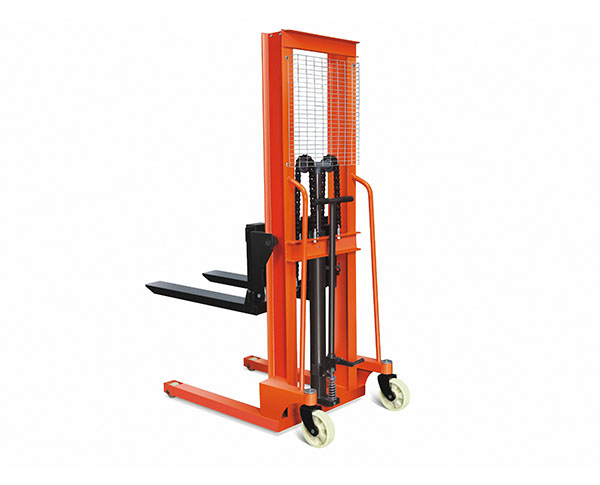

Hand stacker is hand push & hand lift stacker which provides cost-effective handling for both vehicle loading and production areas. Easy maintenance and low running costs.

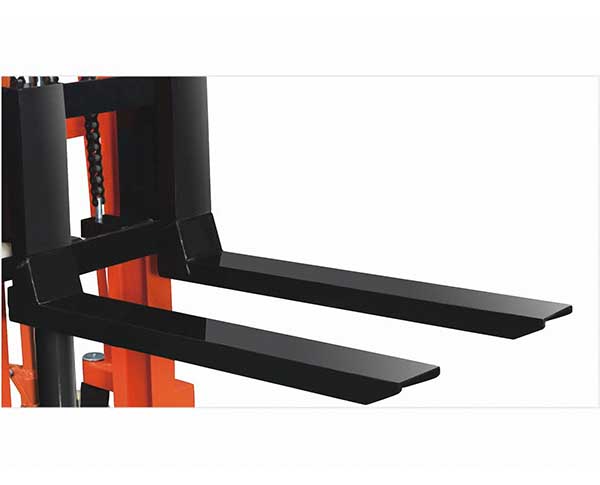

- Adjustable forks to coordinate with different requirements.

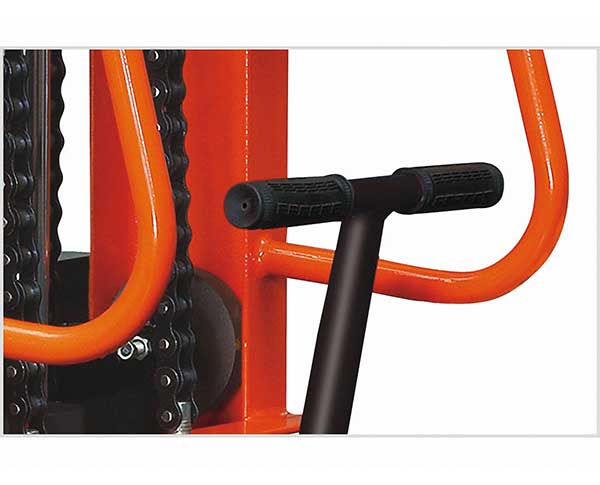

- Ergonomic rubber handle ensures a comfortable easy operation.

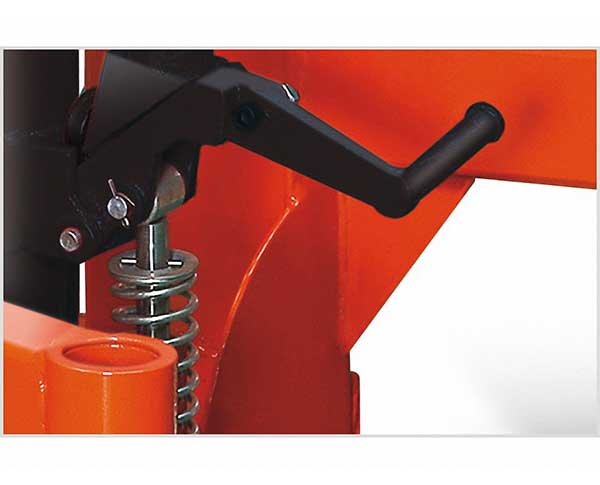

- Effortless and quick lifting for using foot pedal without loads.
| Model | CTY-A1.0 | CTY-A2.0 | CTY-A3.0 |
| Rated lifting capacity(kg) | 1000 | 2000 | 3000 |
| Max. lifting height(mm) | 1600 | 1600 | 1600 |
| Lowered height of forks(mm) | 100 | 100 | 100 |
| Fork length(mm) | 900 | 900 | 1000 |
| Adjustable width of forks(mm) | 200-580 | 240-680 | 300-770 |
| Lifting speed(mm/stroke) | 20 | 14 | 10 |
| Lowering speed(mm/stroke) | Controllable | Controllable | Controllable |
| Outer width of front legs(mm) | 720 | 740 | 750 |
| Operation power of crank(kg) | 24 | 32 | 40 |
| Min. refuel volume for fuel tank(L) | 1.6 | 2.0 | 3.0 |
| Front wheel size(mm) | φ100x50 | φ100x50 | φ100x50 |
| Rear wheel size(mm) | φ180x50 | φ180x50 | φ180x50 |
| Overall size(mm) | 2050x730x1380 | 2050x740x1480 | 2050x740x1650 |
| Self weight(mm) | 115 | 180 | 280 |
