氣動(dòng)臥式千斤頂
FEATURES·3 saddle extension adapters（4’’，2-3/8’’，3/4’’）with“V”platform for added positive contact and stability and low profile heights
·Commercial industrial design with convenient extension adapter holder and pneumatic hose hook for easy accessibility
·Oversized wheels provide easy maneuverability and positioning
·Exteded“T”handle and remote release lever provides user comfort
·Heavy duty dual return springs retracts ram quickly and with precision control
·All steel frame construction with rust resistant finish for longer tool life
·Engineered with a built-in overload limiting device for added protection
·Meet ANSI/ASME & CE/GS standards
| Model | Lifting Wt | Min.H | Lifting H | Adjust H | Max H | Net Wt | GR.WT. | Measurement | Quantity | 20′Container |
| (ton) | (mm) | (mm) | (mm) | (mm) | (kg) | (kg) | (cm) | (pcs) | (pcs) | |

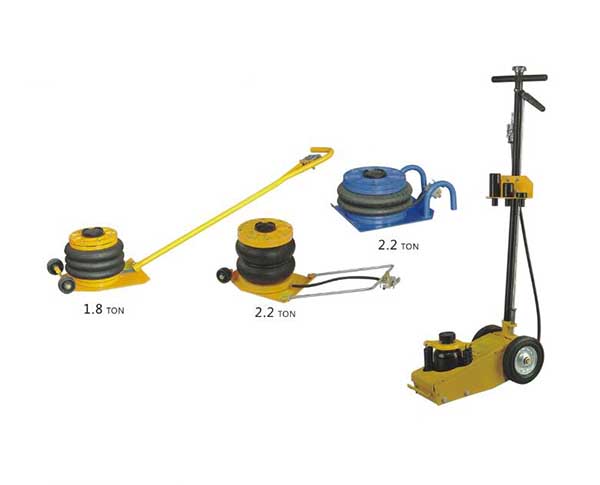

| JTAJ-B030222 | 22 | 225 | 140 | 80 | 445 | 36 | 38 | 64×35×30 | 1 | 400 |
| Model | Capacity | Min.H | Max H | Net Wt | GR.WT. | Packing Size | 20′Container |
| (ton) | (mm) | (mm) | (kg) | (kg) | (cm) | (pcs) | |
| JTAJ-B030321 | 1.8 | 150 | 435 | 22 | 23 | 47*30*16 | 650 |
| JTAJ-B030322 | 2.2 | 145 | 305 | 22 | 23 | 49*30*15 | 780 |
| JTAJ-B030323 | 2.2 | 145 | 305 | 22 | 24 | 54*33*15 | 750 |
